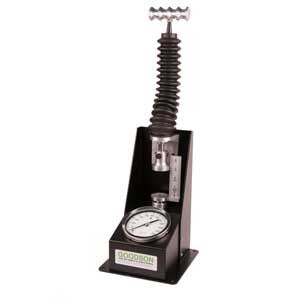

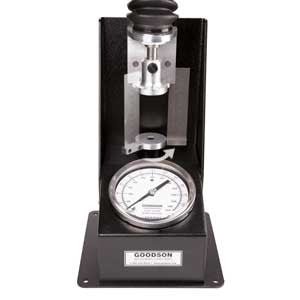

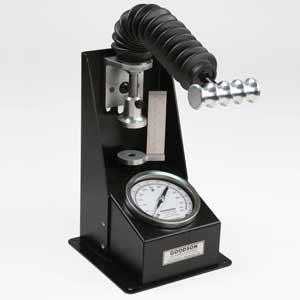

VST-60G : Analog Valve Spring Tester

Goodson Tools & Supplies

Order No. VST-60G

American Made Analog Valve Spring Tester

  • 600 pound capacity in 10 pound increments

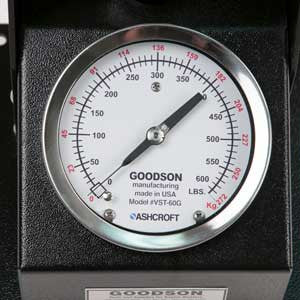

  • 5" diameter Ashcroft quality analog pressure gauge reads in both SAE and Metric

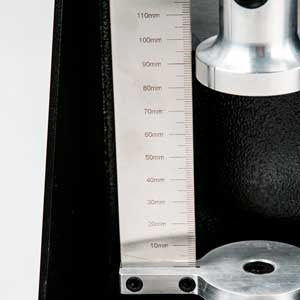

  • Integral vertical height scale that moves 180° right to left to show inches on one side and millimeters on the other
  • Spring platform that handles springs up to 2" diameter x 4.5" overall height
  • Vertical height adjustment in 1/2" increments
  • Adjustable pressing anvil for fine-tuning open and closed pressures for height measurement
  • T-Handle conforms to the operator's grip for firm control
  • Heavy duty powder coated texture finish
  • Sealed hydraulic load cell
  • Over-center cam action that holds spring at the desired height

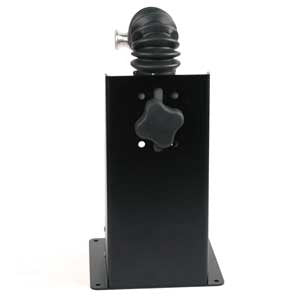

  • Rubber protective boot to keep the mechanism debris-free
  • Base features four 5/16" mounting holes


  • UNIT WEIGHT: 19-1/2 lbs.
  • FOOTPRINT: 8-1/2" Square Base
  • HEIGHT: 28" Overall Height with handle fully extended
