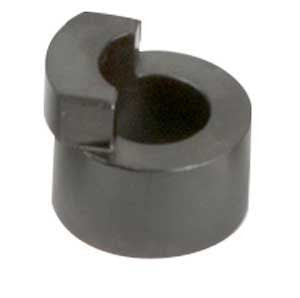

TBD : Wrist Pin Bushing Drivers

Wrist Pin Bushing Drivers | Variant Collection


Click this collection for the following variants: TBD-25, TBD-26, TBD-27, TBD-28, TBD-30TBD-31TBD-31A, TBD-32TBD-33TBD-34TBD-36TBD-38TBD-40, TBD-42TBD-45, TBD-46TBD-50TBD-52TBD-54.

These wrist pin bushing drivers are designed to work with the Goodson Wrist Pin Bushing Press Kit (TB-KIT). Wrist Pin Bushing Drivers are sold by dimension, not application. To select the correct driver, measure the wrist pin diameter then select a driver from the list that is .030" to .040" smaller. Measure the thickness of the bushing then select a driver with a "step" size that is 50% to 60% of the thickness. This is your Wrist Pin Bushing Driver. If you don't see the size that you need, please contact Goodson by phone at 1-800-533-8010 or send an email to ask about a special order.

Each Wrist Pin Bushing Driver is stamped with the size for easy identification.

Add to cart

Order No. Description Price Quantity
TBD-25 25mm Nominal | 0.957" Actual | 0.063" Step | TBD-25 $64.99
TBD-26 26mm Nominal | 0.990" Actual | 0.058" Step | TBD-26 $64.99
TBD-27 27mm Nominal | 1.032" Actual | 0.067" Step | TBD-27 $64.99
TBD-28 28mm Nominal | 1.006" Actual | 0.055" Step | TBD-28 $64.99
TBD-30 30mm Nominal | 1.102" Actual | 0.075" Step | TBD-30 $64.99
TBD-31 31mm Nominal | 1.158" Actual | 0.090" Step | TBD-31 $64.99
TBD-31A 31mm Nominal | 1.198" Actual | 0.067" Step | TBD-31A $64.99
TBD-32 32mm Nominal | 1.222" Actual | 0.078" Step | TBD-32 $64.99
TBD-33 33mm Nominal | 1.268" Actual | 0.068" Step | TBD-33 $64.99
TBD-34 34mm Nominal | 1.304" Actual | 0.073" Step | TBD-34 $64.99
TBD-36 36mm Nominal | 1.377" Actual | 0.075" Step | TBD-36 $64.99
TBD-38 38mm Nominal | 1.458" Actual | 0.076" Step | TBD-38 $64.99
TBD-40 40mm Nominal | 1.554" Actual | 0.068" Step | TBD-40 $64.99
TBD-42 42mm Nominal | 1.614" Actual | 0.097" Step | TBD-42 $64.99
TBD-45 45mm Nominal | 1.742" Actual | 0.089" Step | TBD-45 $64.99
TBD-46 46mm Nominal | 1.772" Actual | 0.108" Step | TBD-46 $64.99
TBD-50 50mm Nominal | 1.940" Actual | 0.083" Step | TBD-50 $64.99
TBD-52 52mm Nominal | 2.012" Actual | 0.114" Step | TBD-52 $64.99
TBD-54 54mm Nominal | 2.099" Actual | 0.081" Step | TBD-54 $64.99
