Reluctor Ring Spotlight

Reluctor Ring Spotlight

Factory Style GM Steel 58 Tooth Reluctor RingRR-58T : Factory-Style GM Steel 58 Tooth Reluctor Ring

  • Single Piece Steel
  • Fits LS2, LS3 and LS7 engines
  • View Product

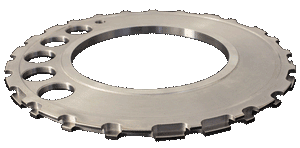

Callies 24 Tooth Billet Steel Reluctor RingRR-24T : Callies 24 Tooth Billet Steel Reluctor Ring

  • For LS1 and LS6 Engines
  • Single Piece
  • This is not a factory part
  • View Product

Both the reluctor rings are single pieces. Meaning there is more strength and will not come apart like the two piece designs.

As an added bonus, Goodson has the only patented installation tool to phase the reluctor rings in correctly!

Goodson Reluctor Ring Installation Tool
  • Fits Generation III engines : 4.8/LR4, 5.3/LM7 and 6.0/LQ4
  • Aligns GM# 12559353 and 12586768 sensor rings on the crankshaft in the correct phased position
  • Indexes the dowel hole of the flange to the dowel hole of the sensor ring
  • US Patent No. 7,716,827

Removing the reluctor ring when reconditioning crankshafts is important as cleaning media and debris can become trapped between the ring and the crankshaft counter weight. You may also need to replace the reluctor ring if it has become damaged or if it hangs up.

Heat the reluctor ring to 450 degrees F, then slide it onto the casting. Be sure to deburr all components before beginning assembly. Any sharp edges will cause the reluctor ring to catch on the casting, making assembly impossible.

More information about the Reluctor Ring Installation Tool.
